Ubuntu 20.04 on Lenovo T14s AMD Gen1

Basically, all machine functions working well, including:

• Intel AX200 wireless card
• HDMI output with audio
• DP output on USB-C port (one cable, including power supply, video and audio output)
• USB hub on USB-C port
• wake up from sleep

All above functions tested in Ubuntu 20.04.4 LTS with kernel 5.13.0-39-generic

mike@ThinkPad-T14s:~$ uname -a
Linux ThinkPad-T14s 5.13.0-39-generic #44~20.04.1-Ubuntu SMP Thu Mar 24 16:43:35 UTC 2022 x86_64 x86_64 x86_64 GNU/Linux

Requirements

Bootable USB drive

1. download latest image from Ubuntu official website.
2. use Rufus burn ISO to your USB Drive

BIOS Settings

Before migrate from Windows to Ubuntu, you need change some BIOS settings to make Ubuntu behave normally.

how to enter BIOS:

1. press enter on the Lenovo screen when booted.
2. press F12 enter the BIOS.

Settings:

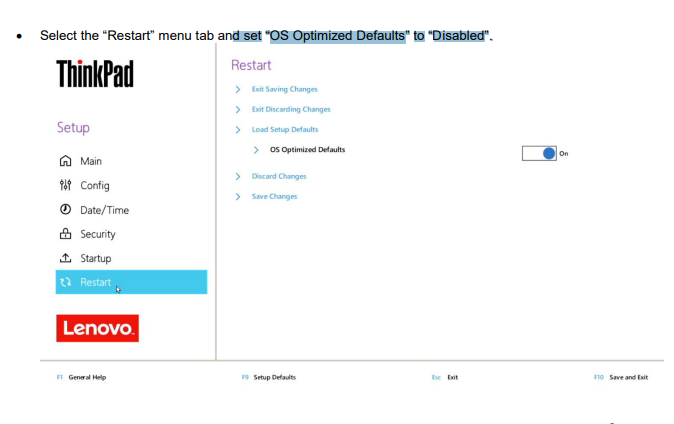

• set “OS Optimized Defaults” to “Disabled”.

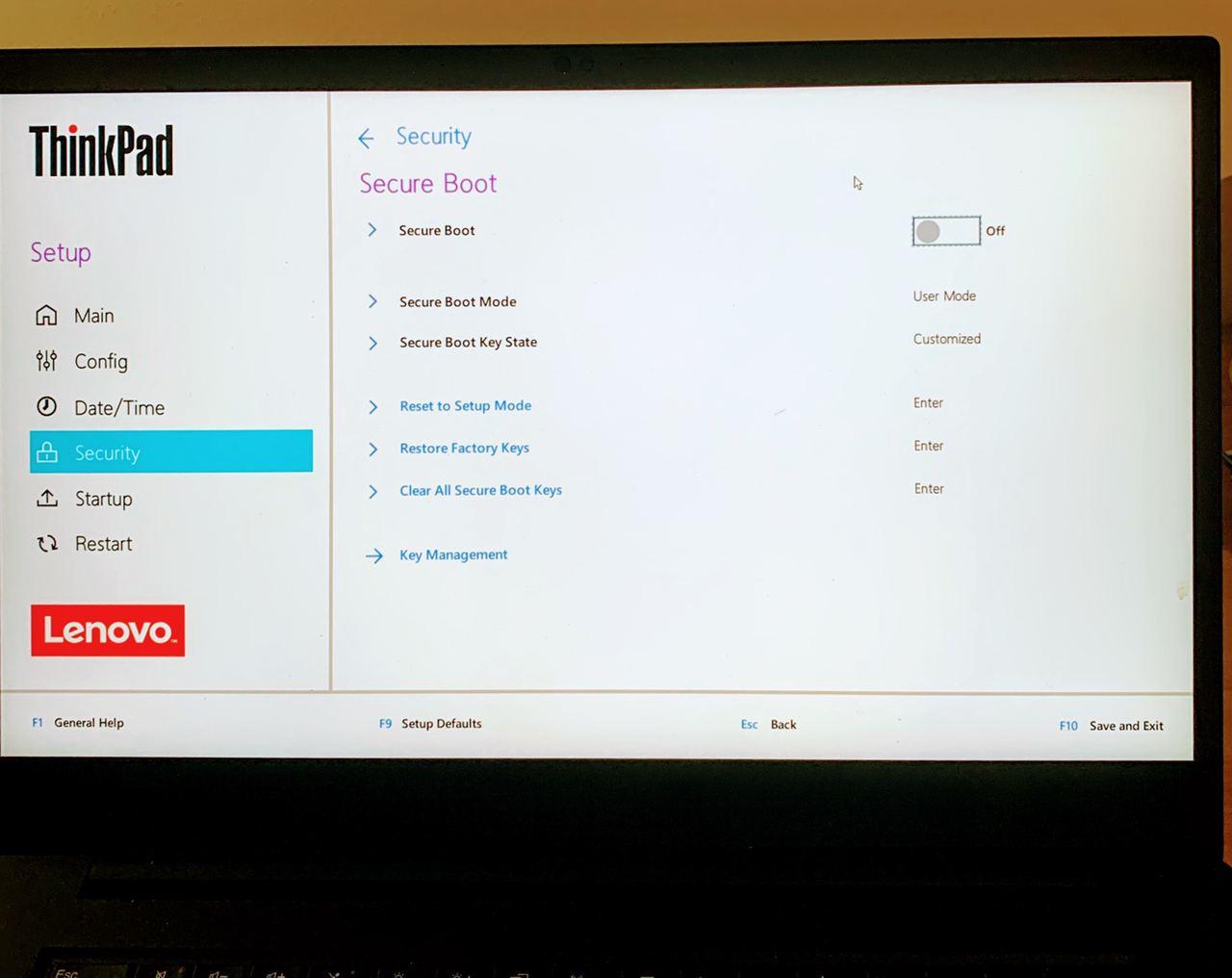

• disable secure boot

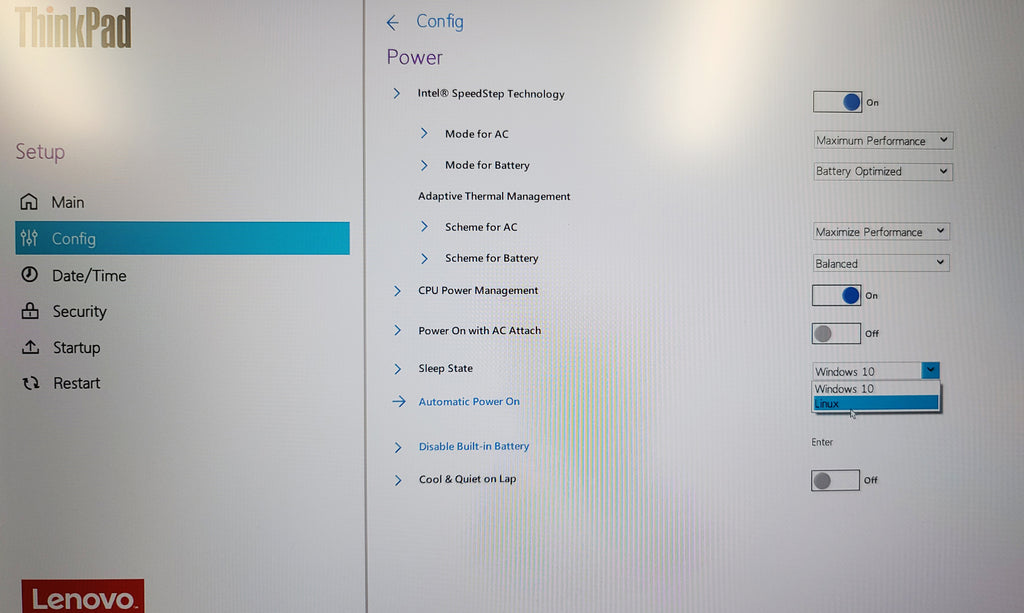

• set sleep state to Linux( this fix can not wake up issues)

  config->power->sleep state



Installment

boot from USB drive:

1. press enter on the Lenovo screen when booted.
2. press F12 enter the boot source selection screen.
3. chose your USB drive

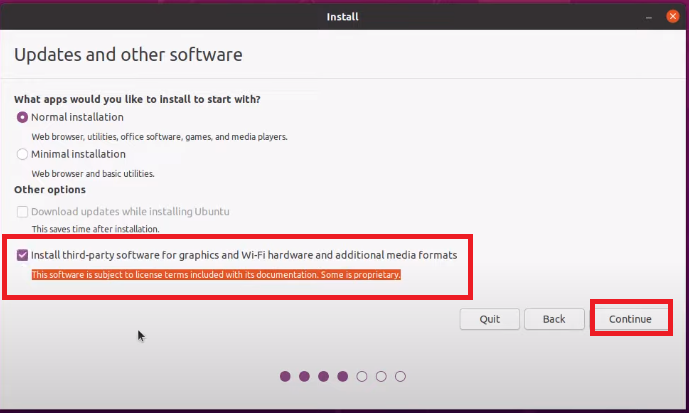

third-party driver:

The opensource third-party driver for AMD Ryzen 7 PRO series chips runs really well on Thinkpad T14s, remember check the box on install wizard.

update system:

After install, update system to latest.

sudo apt update && sudo apt upgrade

Optimization

Below sections are optional optimizations for Ubuntu. Make your own choice.

Tips: If you install Ubuntu with the latest ISO image from Ubuntu official website, you don’t need install the OEM kernel manully. switch to Linux oem kernel.

switch to Linux oem kernel

After you install Ubuntu, default kernel is generic. It may have some annoying problems, like, you can not size brightness with hotkeys, and display colors are not accurate compare to windows. Recommend switch to Linux oem kernel, all above problems will gone.

more details about OEM Kernels, see below link:

OEM Kernel

use this command to install:

sudo apt install linux-oem-20.04b

set mouse wheel speed

Ubuntu default mouse speed is too slow.We need use a config to make it better.

1. install imwheel

   sudo apt install imwheel


2. create .imwheelrc

   sudo gedit ~/.imwheelrc


   content:

   ".*"
   None,      Up,   Button4, 3
   None,      Down, Button5, 3
   Control_L, Up,   Control_L|Button4
   Control_L, Down, Control_L|Button5
   Shift_L,   Up,   Shift_L|Button4
   Shift_L,   Down, Shift_L|Button5


   change the number 3 more smaller if you think the speed is too fast.

3. starting onboot

   use command imwheel -kill to start imwheel. Also, you could use gnome-session-properties set this command as a startup command.

Change Ubuntu notification position to right

1. install gnome tweaks and gnome-shell-extensions

   sudo apt install gnome-tweaks gnome-shell-extensions


2. install Host Connector ()

   sudo apt install chrome-gnome-shell


3. use chrome open https://extensions.gnome.org/, install Notification Banner Position

Show the net speed on the status bar

1. make sure you already installed gnome-tweak, gnome-shell-extensions
2. search Net speed Simplified in the extensions store.

Software recommendation

For using Ubuntu more conveniently , I recommend some nice software on Ubuntu.

Onedrive

If you just migrate from Windows, and still have some important files on onedrive, you should use this opensource onedrive client for Ubuntu(works in terminal).

you can use the install script from github, or install from a custom apt repository.

1. add repository and install

   sudo add-apt-repository ppa:yann1ck/onedrive && sudo apt install -y onedrive


2. login

   onedrive


3. sync with specific directory

   onedrive --synchronize --single-directory [dirName]


flameshot

Best sceenshot tools on linux.

sudo apt install flameshot

Remmina

Best remote desktop app in Linux, support RDP ,VNC protocals. If you have another windows machine which is often accessed, use this app to access your windows machine on Ubuntu.

sudo snap install remmina
